5.15.2010

+++ CQ CQ +++ this is Delta Bravo One India Delta calling +++

Dear OM (YL),

welcome to my Ham-Website,

you want to confirm (R/S) our two-way radiocommunication or one-way reception of my signal?
To confirm, you have five options, via bureau of the DARC, eQSL, QRZ.com, Email or Mail (postal adress & last name you'll find on qrz.com.

LIVE-VIEW in north direction out of my SHACK













CURRENT NOAA SAT image















More Infos about me and my working conditions:

Callsign: DB1ID
Operator-Name:Michael









License Class A, licensed since 1987
Location:
City: Alzey
DOK: K21
QTH Locator: JN49BR
EPC # 18485
DMC # 05459

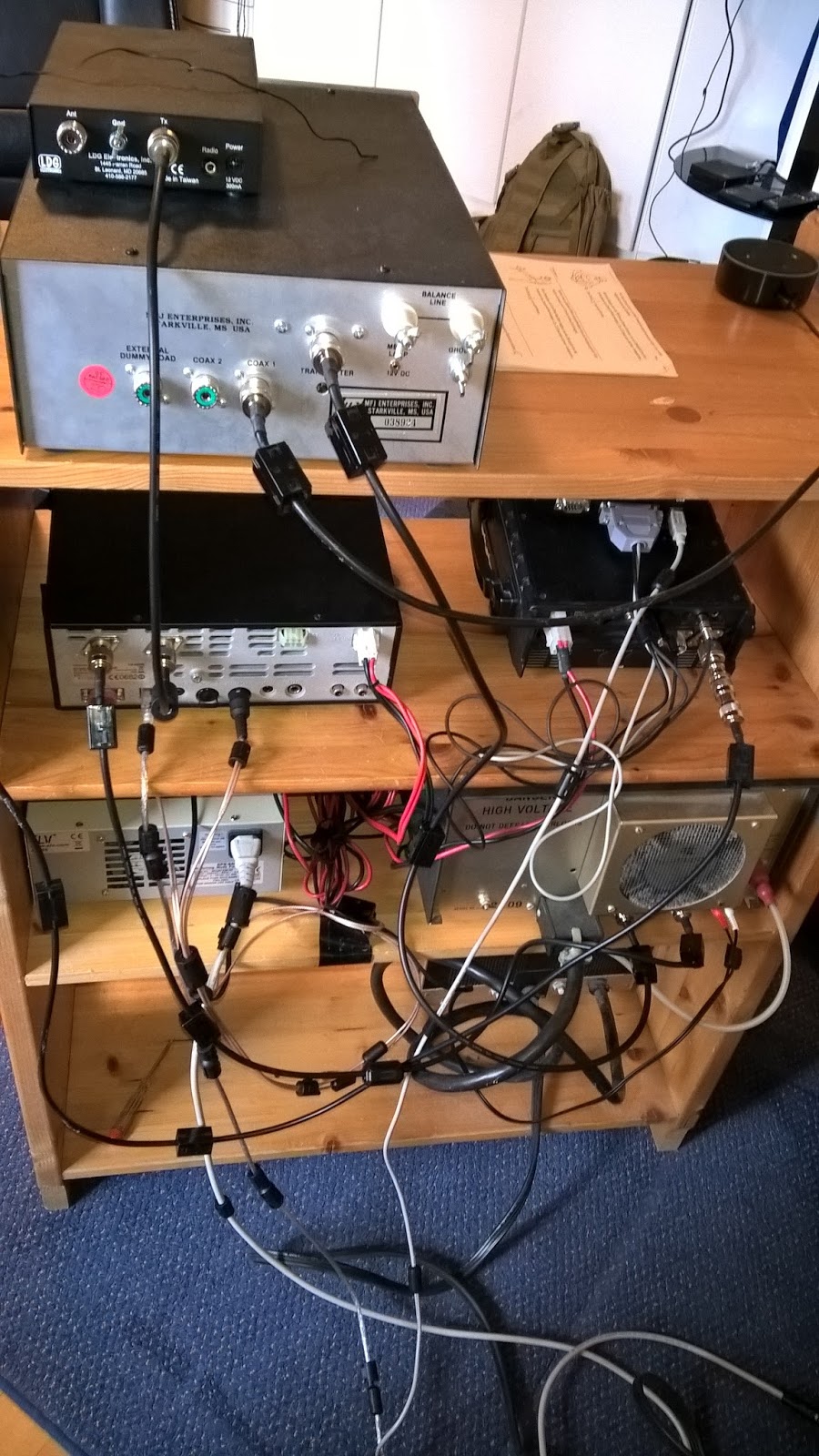

Working Conditions:

Transceivers:


Antenna-Tuner: Drake MN 2700 & MFJ-969
Power Amplifier (PA): DRAKE L7

Antennas:
Diamond CPVU8 on telescope pole 8m over gnd. This antenna works 80m up to 70cm (50-200W); also selfmade Vobbel-Antenna 27m (hot part) / 6m (cold part) as folded inv V with selfmade 1:9 Balun (100W) + ferrit-core from Amidon in wire-wrap-method from M0UKD with SCF against BCI.





The Vobbel-Antenna is an alrounder and good for nearly all HF-Bands: 160-/80+/60+/40m++/30+++/20+++/17+++/15++/12++/10++ - construction manual as PDF here: >>> Click here <<<

My favorite MODs are the Digi-Mods WSPR, PSK31 , PSK63, RTTY, SSTV, ROS, JT65 and FT8

WSPR MOD with only 5W


BPSK31 in 24h:










JT65 in 24h:







 JT65 in QSO:













ROS  and JT9











For CW i use the software MRP40 and MixW:










In RTTY i am working with the MMTTY Software and MixW:











For SSTV i use MMSSTV:











HELL is possible with MixW








FreeDV  for Digital Voice over Shortwave













Automatic Digi-Mode is SIM31










OFF the AIR i use D-STAR & EchoLink








If the band is open (here on 10m in 03/2012) it could look like this:









Newest Digi-Mod ist FT8, something in between PSK63 and JT65 - fast & long range, here with 160m on the 1:9 Ant and 60m QSO with Australia


























Also on the AIR with APRS with contact to the spacestation ISS using UI-View, Soundmodem from UZ7HO, TRX Yaesu-FT987D, 50W on ANT and the RigExpert Standard as extern Soundcard





In APRS with the handheld Kenwood TH-D72 (GPS + TNC + 70cm + 2m) on the Road:


Other Toys:
are my UP4DAR to realize D-Star via Internet and with my TRX Yaesu FT-987D, look at the xREFLECTOR if i am ON-AIR, here on the MAP you'll see also my exactly GPS-Position


GSM-Data with the HackRF One in Linux-Kali & Wireshark, GR-GSM


FUNcube Dongle Pro with an Scanner-Antenna SDRsharp as  software listening to a NOAA-Weather-Satellite


























I love it to make Outdoor-Activities in combined with Amateur Radio, therefore i am using the FT-817ND and the fantastic Alexloop-Antenna on a Foto-Tripod:


Own Radio History:
In the age of 15 (1977) i have got my first radio, a walkie-talkie with 3 channels and 0.5W AM Output - the Stabo Stratofon P3 - so everything started with this ...


Vy 73 & 55 and good DX

       Michael
